3D modeling of Universal Joint – Part 3
Select the XZ Plane
Sketch the circle with a diameter of 50mm
Extrude up to 60mm
Sketch on the YZ Plane

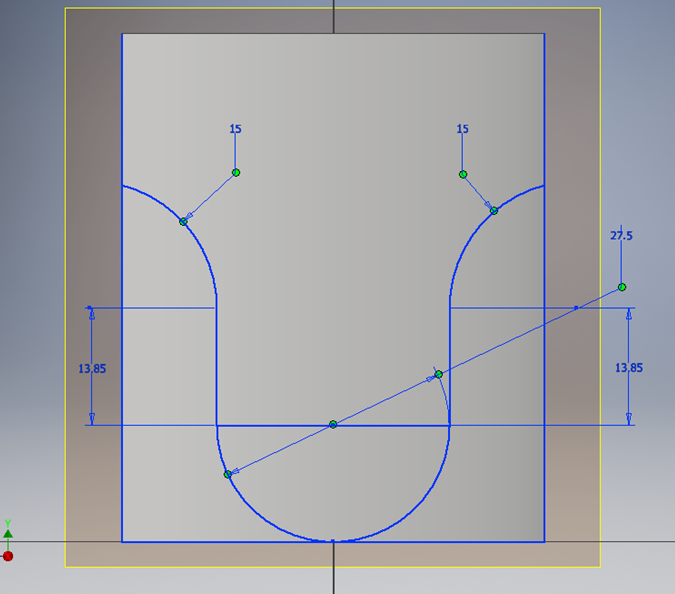

Sketch as below
Extrude cut with both directions

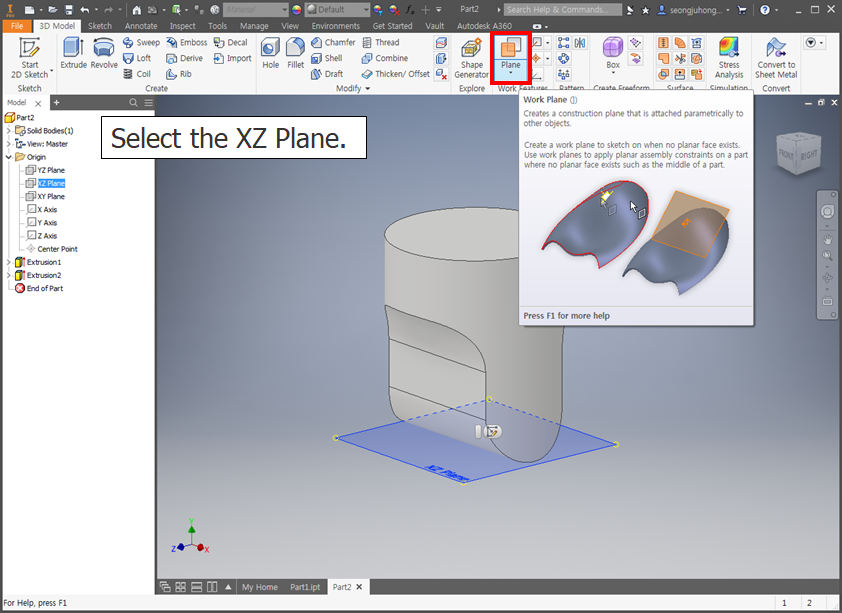

Work Plane

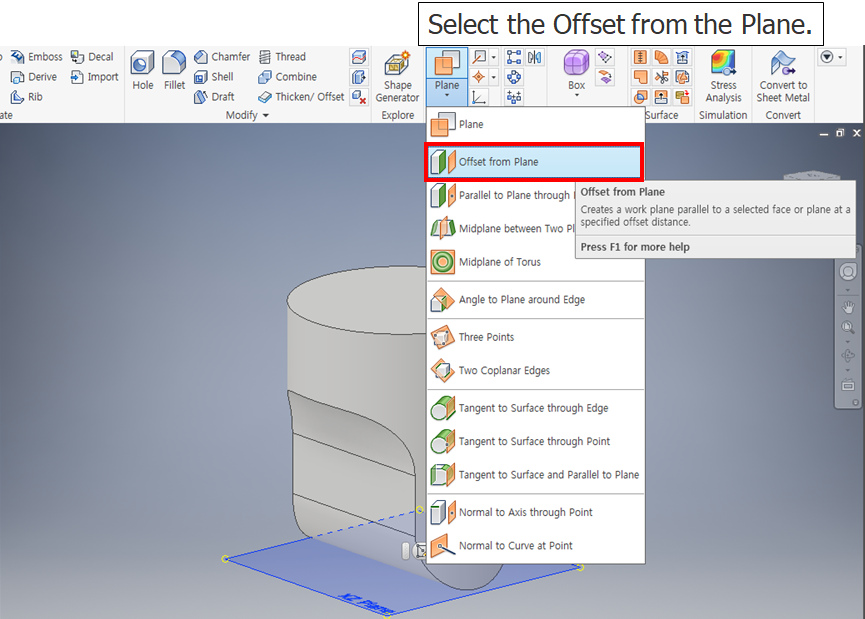

Offset from Plane

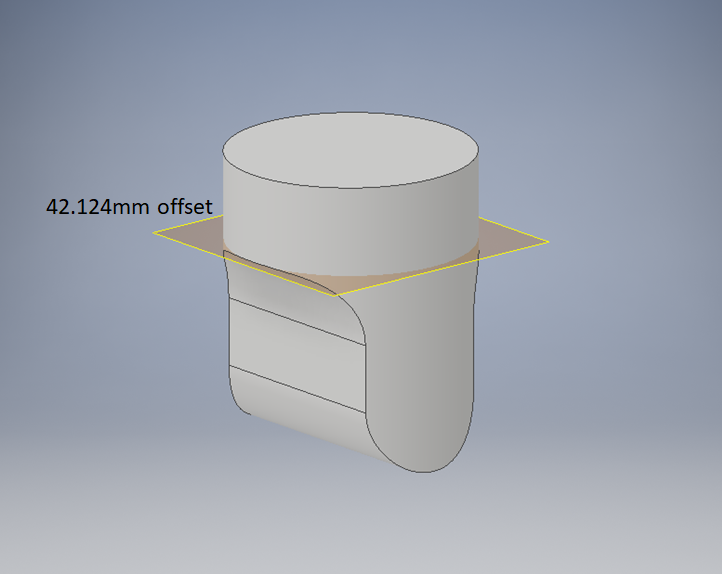

Offset from Plane (42.124mm offset)

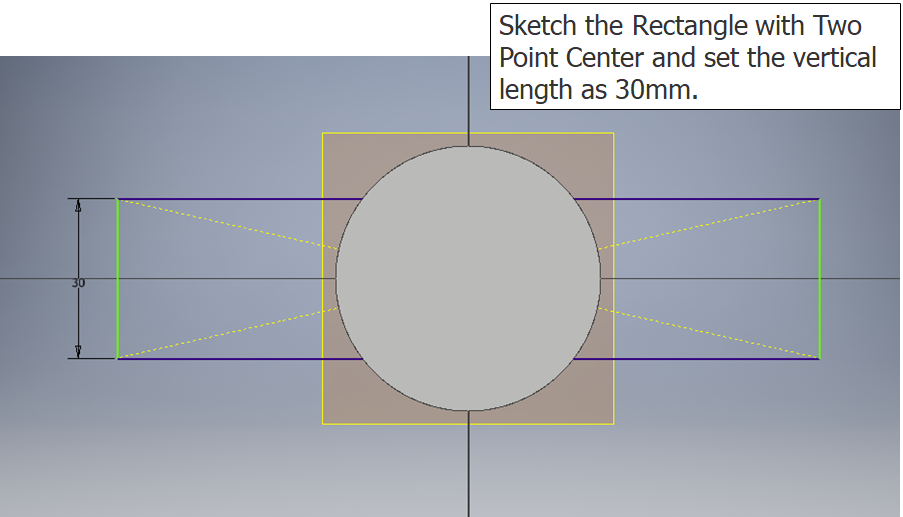

2D Sketch on the Work Plane

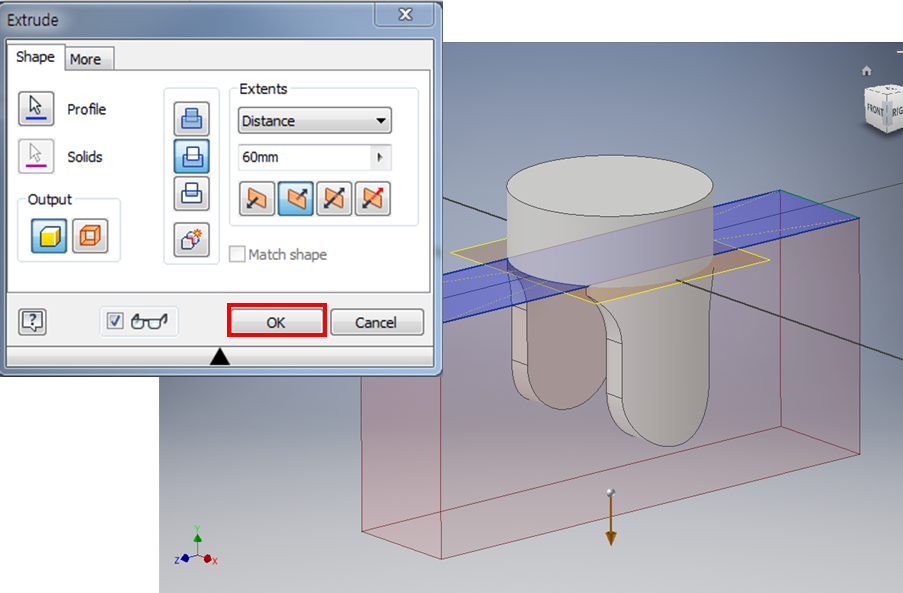

Extrude Cut

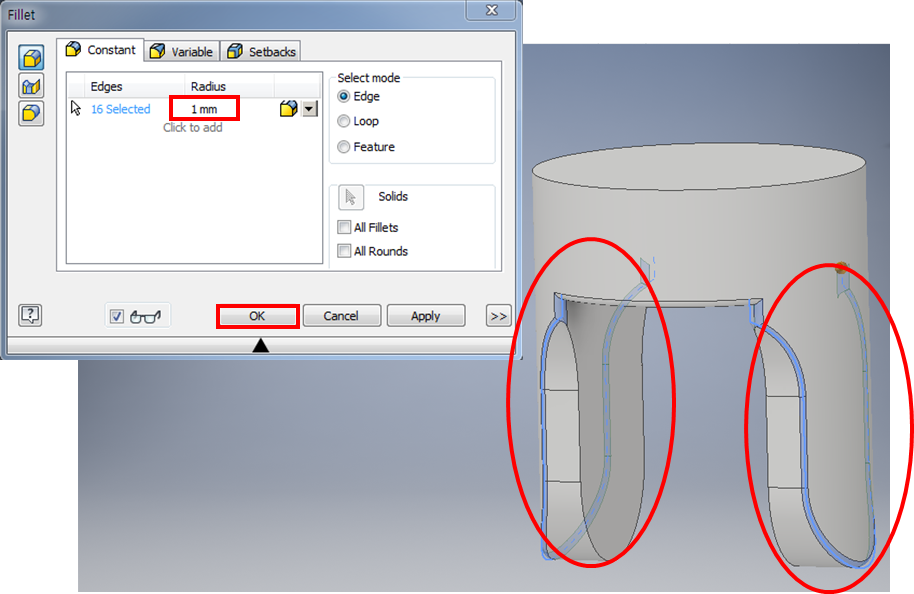

Fillet – Fillet with Radius of 1mm
Select YZ Plane and Start 2D Sketch

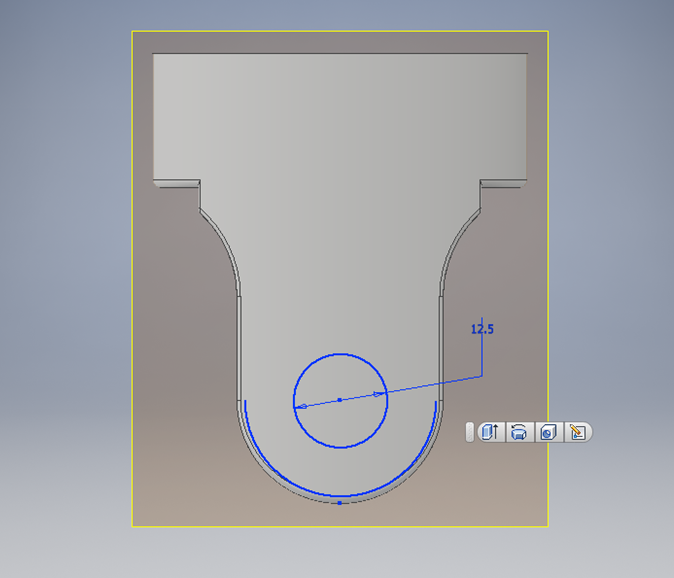

Draw a circle with a radius of 12.5mm

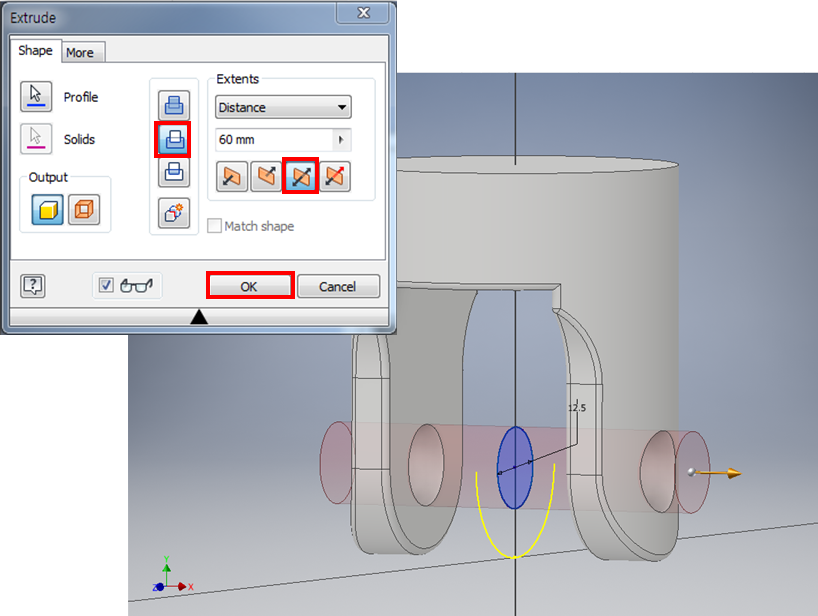

Extrude Cut with both directions

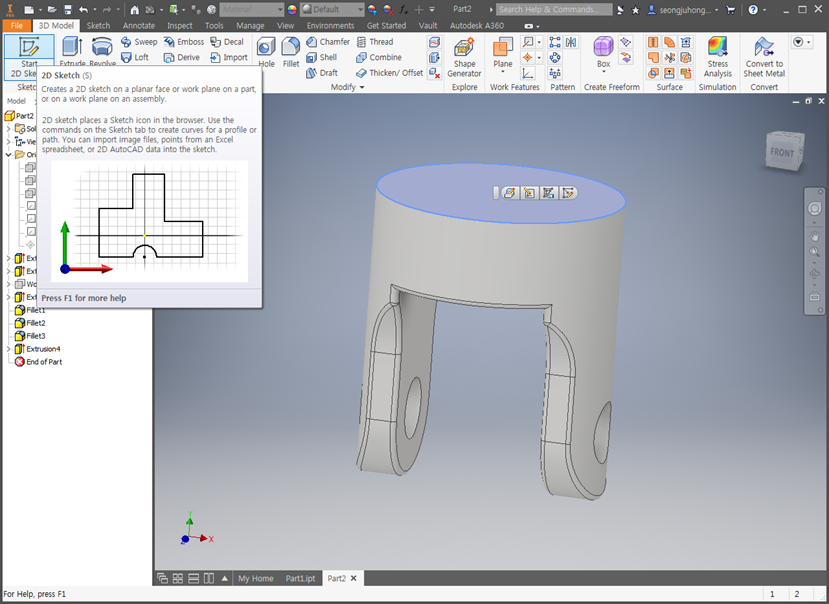

Select the top plane and Start 2D sketch

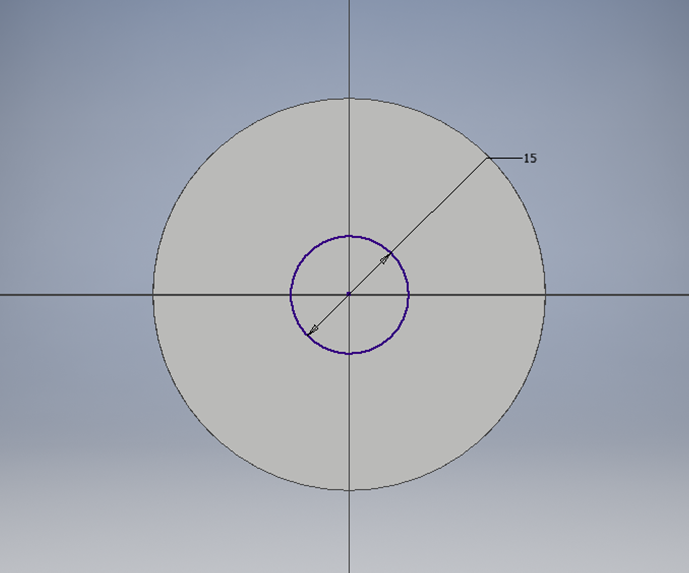

Draw a circle with a radius of 15mm

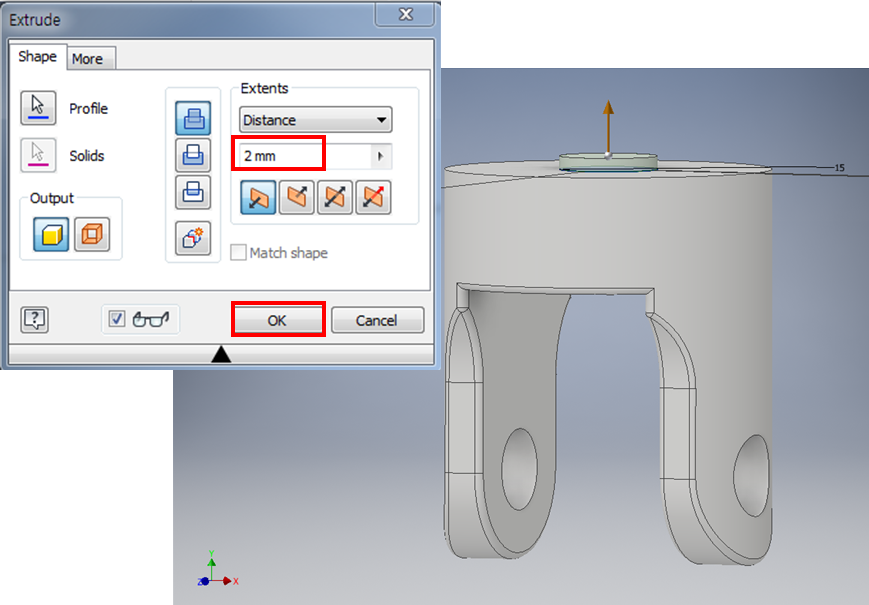

Extrude as 2mm
Chamfer with Distance of 1.5mm

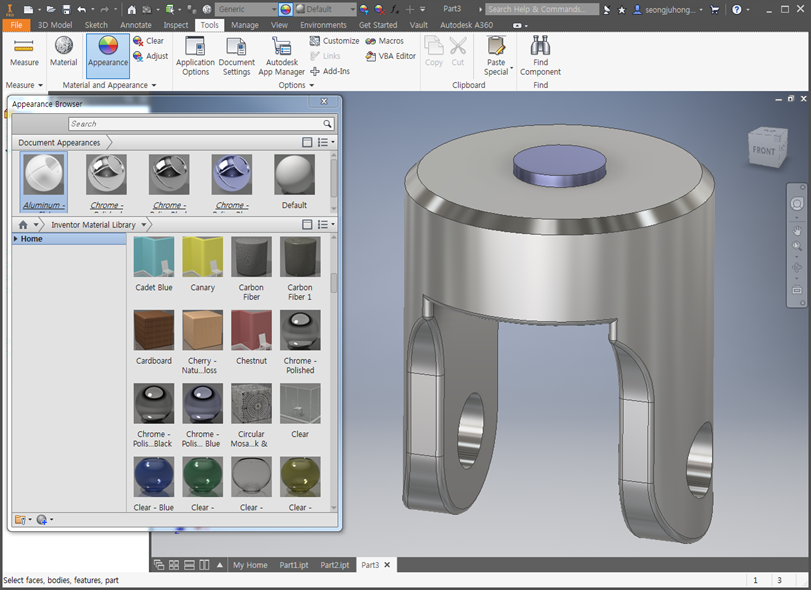

Setting Appearance as you want
Part 3 is completed, Save the file
