3D modeling of Universal Joint – Part 4

Select the YZ Plane and Start 2D Sketch

Draw a circle with diameter of 12.5

Extrude with both directions as 50mm

Select the XZ Plane and Start 2D Sketch

Draw a circle and Extrude as before

Select the XY Plane and Sketch

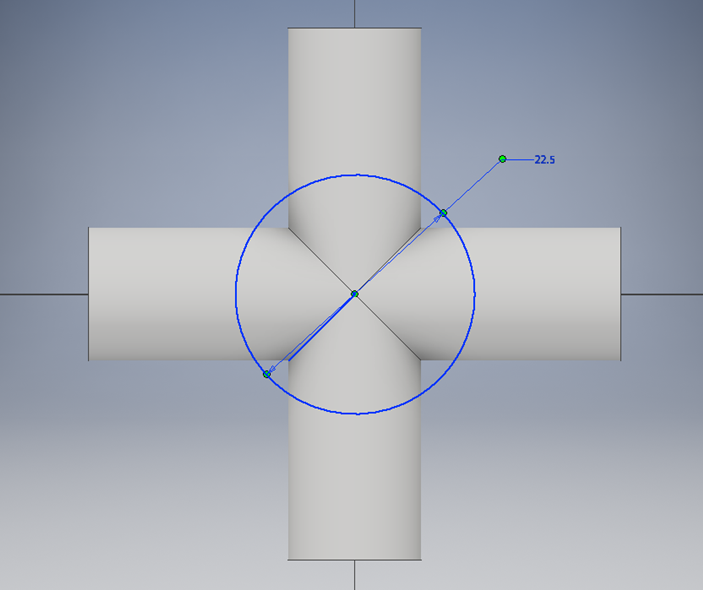

Draw a circle with diameter of 22.5mm

Extrude with both directions as 15mm

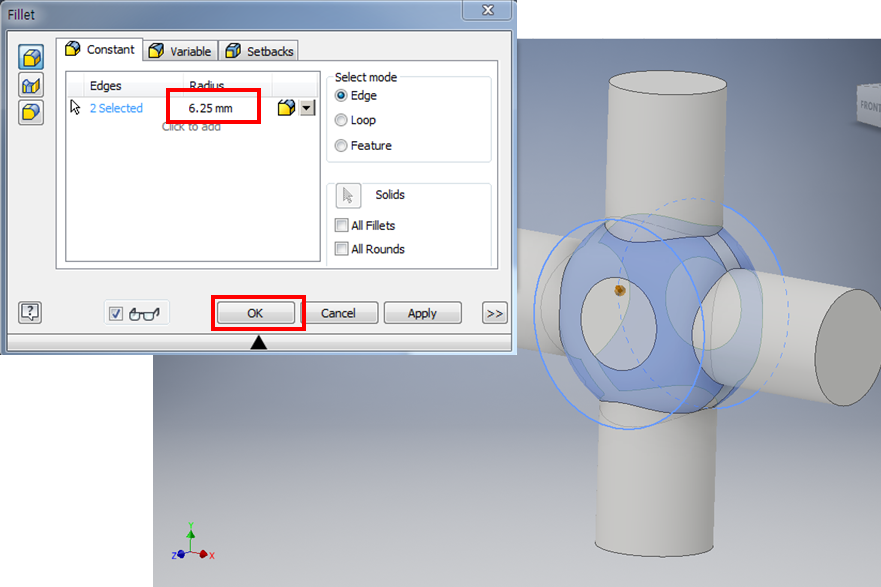

Fillet with Radius of 6.25mm

Fillet with Radius of 0.25mm

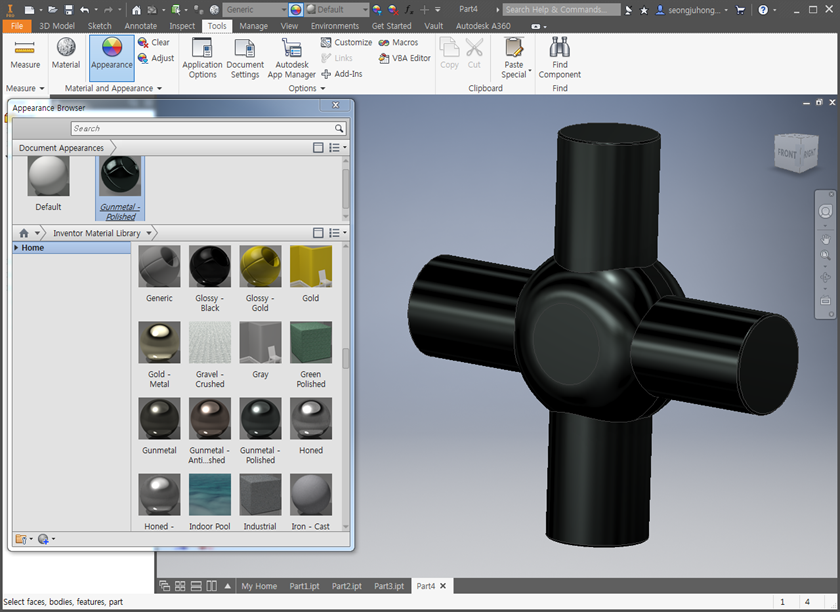

Setting Appearance

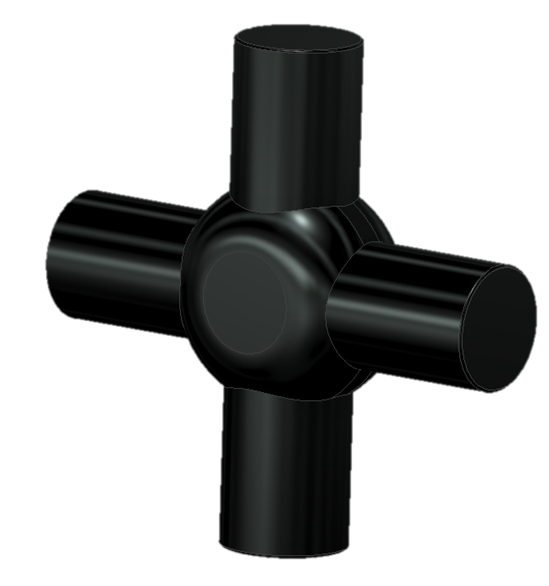

Part 4 is completed, Save the file
