Make First Part File
Click the button “Start 3D Sketch”
Overview
Explore Drawing tools – Line and Circle
Explore Drawing tools – Arc and Rectangle
Sketch – Choose the Two Point Center Rectangle
Dimension – a tool to determine the dimension
Dimension – a tool to determine the dimension
At this time, the dimension input can be inputted by clicking the straight line to input.
Or the distance between two points, the distance between lines and lines, the angle, and the radius can also be entered as intelligent dimensions
Constraints
• 2D and 3D sketch constraints control geometry within sketches
• Assembly constraints and joints establish relationships between components in an assembly that control position and behavior.

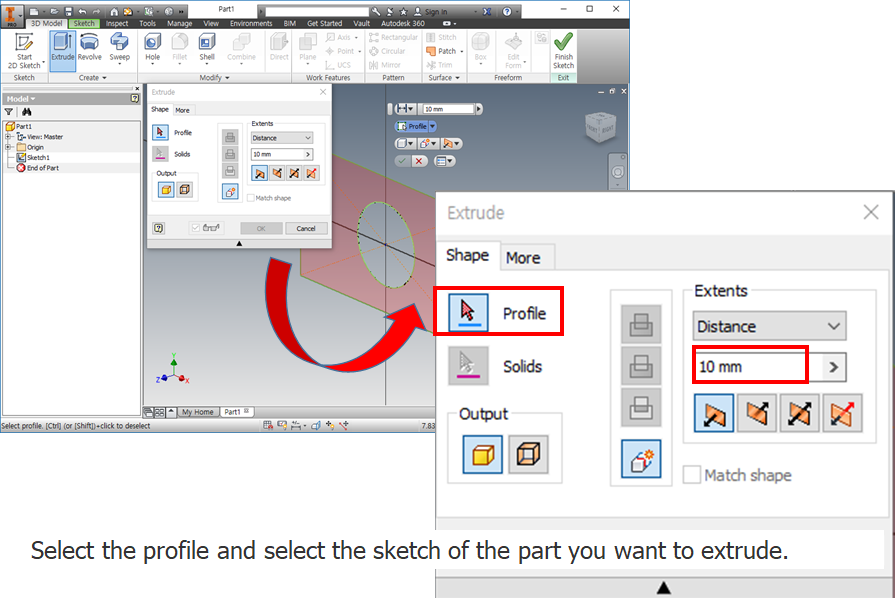

Pitcher – Extrude
Pitcher – Extrude – Cut
Go back to the beginning, draw a rectangle, and let it protrude.
Then click Extrude again.
