3D modeling of Universal Joint – Part 2

Select the XZ Plane

Sketch the circle with a diameter of 50mm

Extrude up to 60mm

Sketch on the YZ Plane

Using Arc Tangent for Sketch

Sketch as below

Extrude cut with both directions

Work Plane

Offset from Plane

Offset from Plane (42.124mm offset)

2D Sketch on the Work Plane

Extrude Cut

Fillet

Fillet with Radius of 1mm



Select YZ Plane and Start 2D Sketch

Draw a circle with a radius of 12.5mm

Extrude Cut with both directions


Select the top plane and Start 2D sketch

Draw a circle with a radius of 15mm

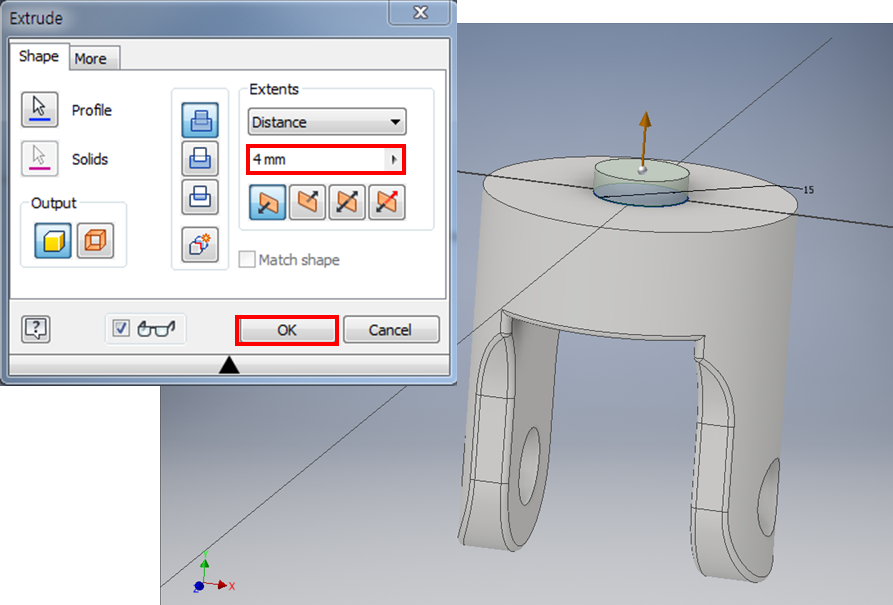

Extrude as 4mm

Select the top plane and Start 2D sketch

Draw a circle with a radius of 22.5mm

Extrude as 20mm

Select the top plane and Start 2D sketch

Draw a circle with a radius of 15mm

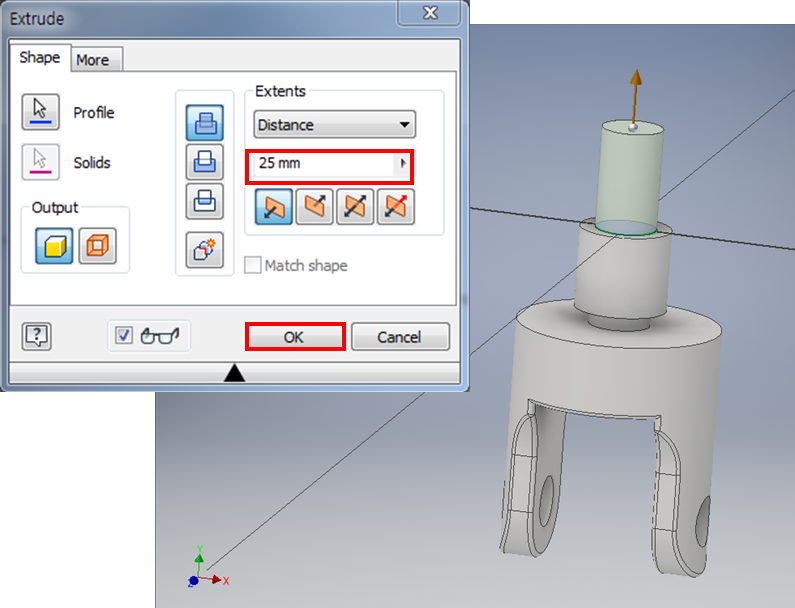

Extrude as 25mm

Fillet with Radius of 2.5mm

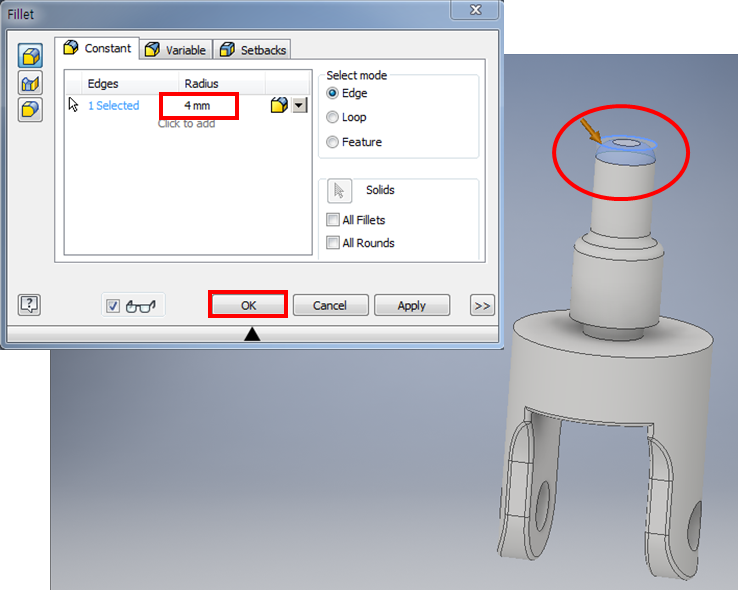

Fillet with Radius of 4mm

Chamfer with Distance of 1.5mm

Make Work Plane with top plane

Work Plane

Draw dotted line

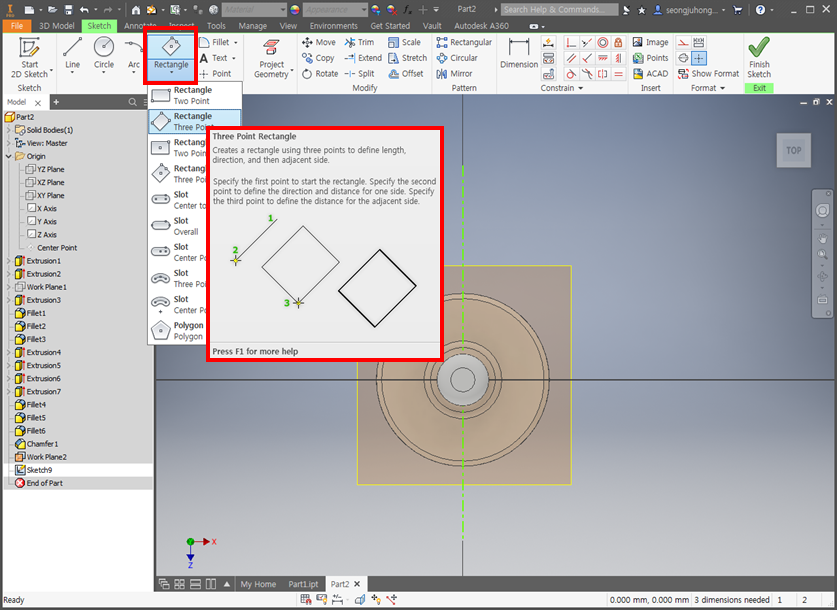

Three Point Rectangle

Draw Rectangle and Set the Dimension

Extrude as 2.5mm

Select the top plane and Start 2D Sketch

Draw a circle with diameter of 4mm

Extrude as 5mm

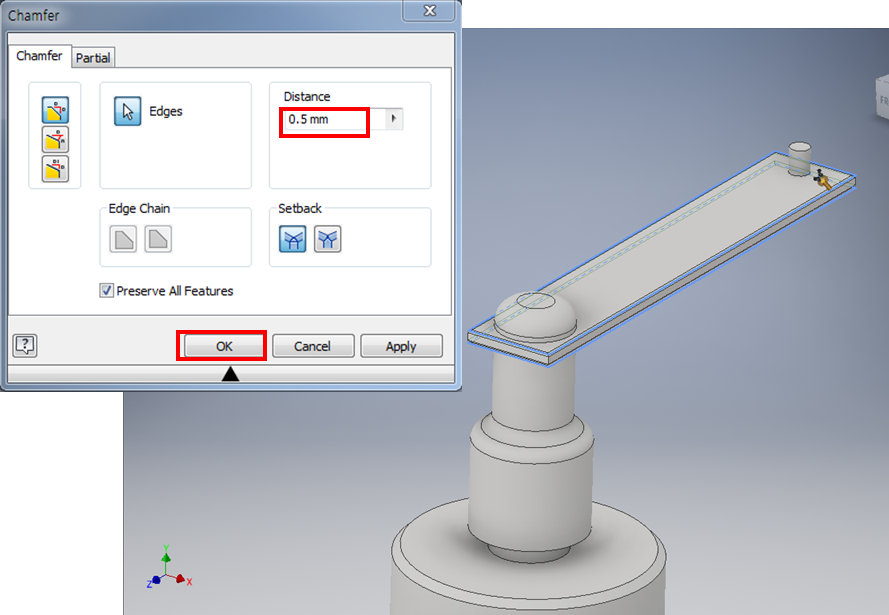

Chamfer with Distance of 0.5mm

Select the YZ Plane and Start 2D Sketch

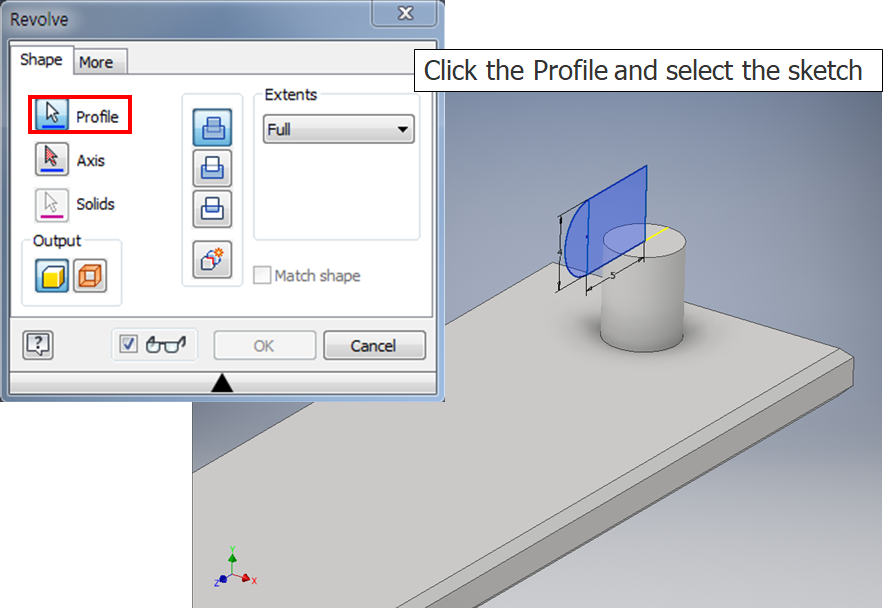

Revolve



Chamfer with Distance of 1mm

Setting Appearance as you want

Part 2 is completed, Save the file
